SKU 65002-050

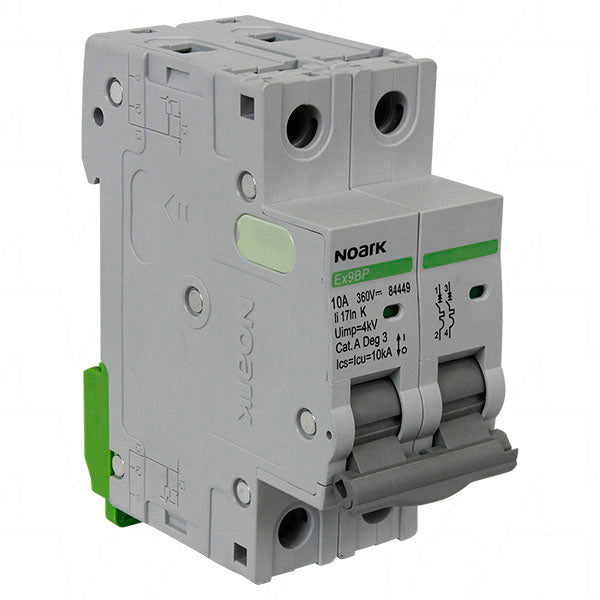

Noark Circuit Breaker N84449-2P-MCB 10A/360VDC
Original price
$37.95
-
Original price
$37.95
Original price
$37.95
$37.95
-
$37.95
Current price
$37.95
inc. GST
Availability:
12 in stock, ready to be shipped
Noark Miniature 360V DC Circuit Breakers (Non-polarised)
Noark DC miniature circuit breakers are non-polarised and suitable for short-circuit and overload protection of general direct current applications up to 10 A, in solar, automation, control, telecommunications, and many other DC circuit applications.
Specifications
| Article Code | 10000146 |
|---|---|
| Noark Series | Ex9BP-N2P K 10A 360VDC |
| Poles | 2 (180VDC per pole) |
| Current Rating (A) | 10A |
| Voltage (Max.) | 360VDC |
| Voltage (Min.) | 12VDC |
| Rated Breaking Capacity | 6kA |
| Curve Type | K |
| Rated Insulation Voltage (VDC) Ui | 1000VDC |
| Terminal Capacity | 35 mm² |
| Terminal Torque (Nm) | 2-3.5Nm |
| Mounting | 35mm Din Rail |
| IP Rating (All sides/terminals) | IP40 / 20 |
| Standards | IEC/EN/AS60947-2, SAA101238EA |
