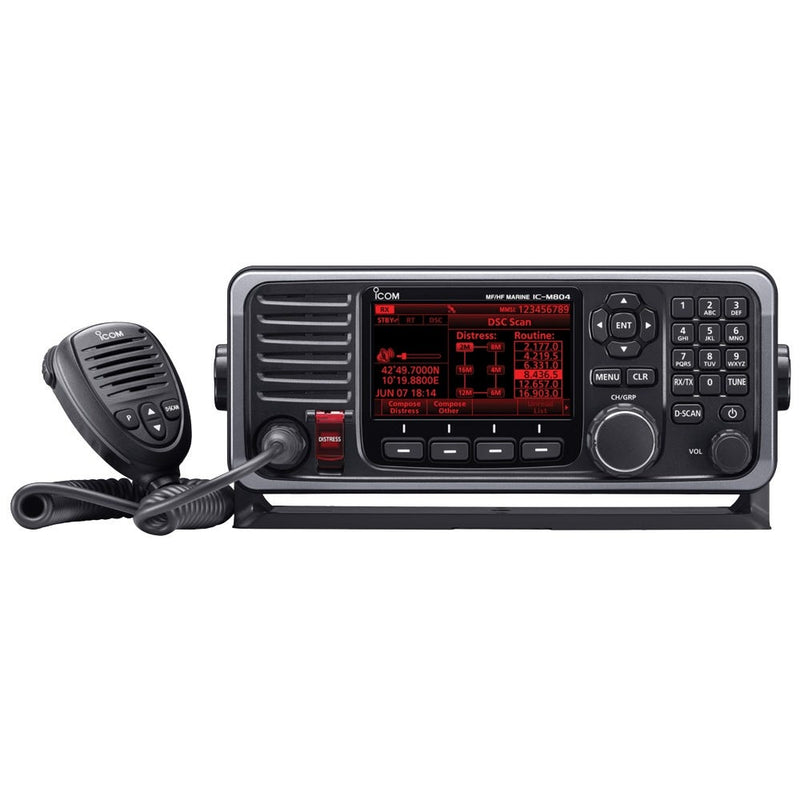

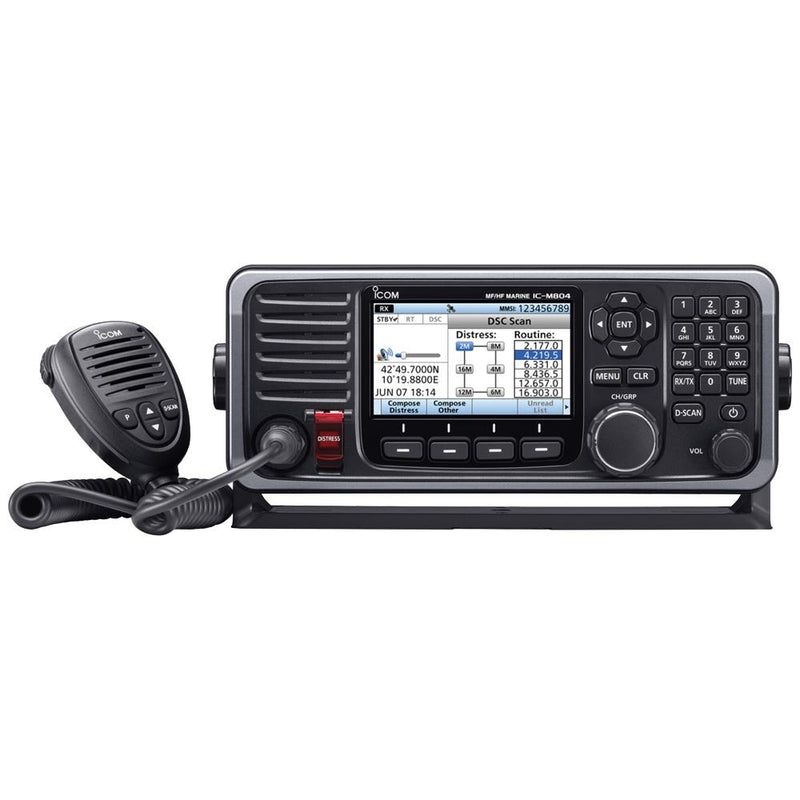

IC-M804_12V 125W, Class-E DSC MF/HF SSB Marine Radio 12V

ICOM IC-M804 MF/HF SSB Marine Radio – Long-Range Communication

Reliable long-range communication with advanced safety and user-friendly features, built for demanding maritime environments.

Emergency & DSC Features

• Large independent Distress button sends digital alerts with GNSS coordinates to other vessels or coast stations.
• Built-in DSC watch receiver continuously monitors six distress channels.
• Stores up to 100 MMSI numbers (75 individual, 25 group) with 10-character ID names.

User-Friendly Operation

• Directional keypad plus soft keys for intuitive, quick access to common functions.
• Large ten-key pad for smooth entry of channels, MMSI numbers, and IDs.
• Instant Replay records the last 2 minutes of received audio to avoid missing calls.

High-Visibility Display

• 4.3” colour TFT LCD with nearly 180° viewing angle.
• Night mode ensures clear readability in low-light conditions.

Built-in GNSS & Connectivity

• Integrated GPS, GLONASS, and SBAS receiver provides position, course, speed, and UTC data.
• NMEA 2000™ and NMEA 0183/-HS support for networked data sharing.

Robust & Reliable

• IPX7 waterproof controller (1 m for 30 min) with corrosion-resistant design.
• Optional AT-141 automatic antenna tuner ensures optimal RF matching.
• Continuous 0.5–29.999 MHz receiver coverage and 125 W (PEP) output via AT-141.
• Advanced RF direct sampling system for superior signal performance.
• 12V DC operation and programmable microphone buttons for quick access.
