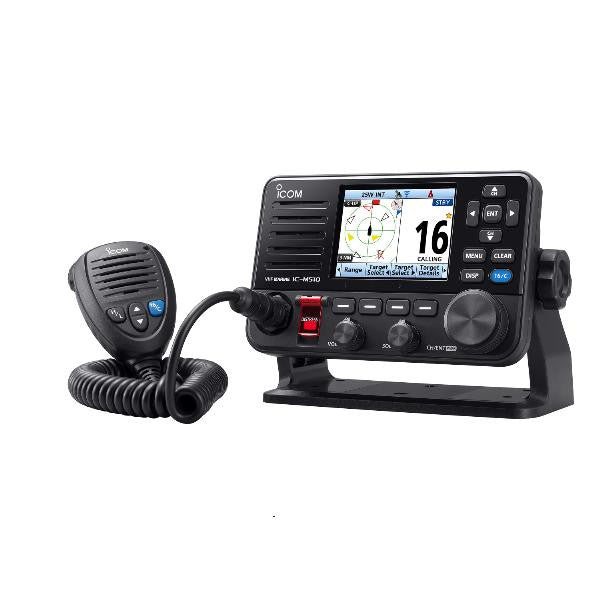

IC-M510E_EVO Class-D DSC VHF Marine Radio with WLAN Function and built-in AIS Receiver & NMEA 2000
Please login to pre order
inc. GST
ICOM IC-M510E "EVO" Class-D DSC VHF Marine Radio with AIS & WLAN Function.
A feature-rich marine radio combining advanced connectivity, AIS integration, and modern design for enhanced onboard communication and navigation.
Smart Device Control & Intercom
Using the RS-M500 app (iOS™/Android™), the radio can be operated wirelessly via WLAN. Up to three smart devices can function as remote microphones or controllers, with intercom capability between the device and the radio.
Built-in AIS Receiver
Displays live AIS vessel traffic directly on the screen and allows individual DSC calls to selected targets straight from the AIS display.
Wide-Angle Colour Display
The high-resolution colour TFT screen offers close to a 180° viewing angle, with clear text and icons. A dedicated night mode improves visibility in low-light conditions.
Slim, Modern Design
With a compact depth of just 53.6 mm, the unit is easy to install and suits both panel and bracket (trunnion) mounting.
Navigation Support
Built-in navigation assists in guiding you to selected waypoints or AIS targets, with storage for up to 100 destinations.
Clear, Powerful Audio
An upgraded internal waterproof speaker delivers loud, crisp audio across a wide frequency range.
NMEA 2000 & Hailer Expansion
The optional CT-M500 interface box enables NMEA 2000 connectivity and adds two-way hailer/PA functionality. Wireless connection between the radio and interface allows flexible installation.
AIS Calling with MA-510TR
When paired with the optional MA-510TR AIS transponder, users can initiate DSC calls to targets without manually entering MMSI numbers.
Additional Features:
- Active Noise Cancelling for improved audio clarity
- NMEA 0183/HS connectivity (NMEA 2000 via CT-M500)
- Built-in GNSS receiver (internal or optional external antenna)
- IP68 waterproof rating (1m depth for up to 60 minutes)
- Automatic foghorn capability (with CT-M500)
- Optional voice scrambler (UT-112A)
- AquaQuake™ function to clear water from the speaker
- Rear connection for supplied HM-205RB speaker microphone
- External speaker support
- Compatible with COMMANDMIC™ HM-195 and HM-229 series
- Supports 4-digit channel display
A premium all-in-one solution for modern marine communication and navigation.
