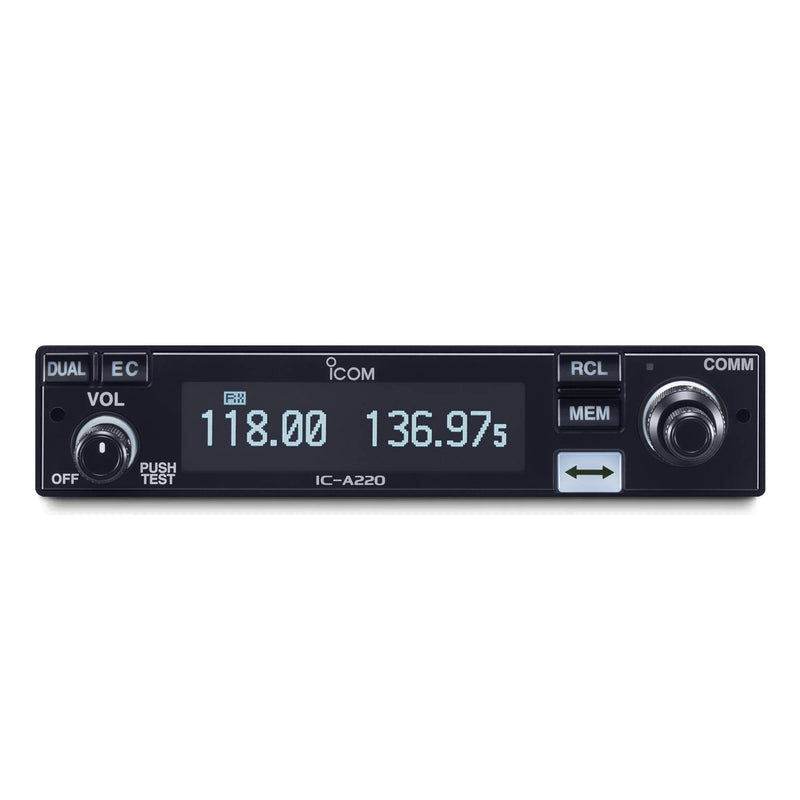

IC-A220 TSO 7 Watt (PEP), Panel Mount VHF Airband Transceiver (TSO Version)

Easy-Install Panel Mount Airband Radio with White OLED Display

Designed for straightforward installation, the A220 panel mount airband transceiver is a popular choice among experimental and light sport pilots, while the TSO-approved version is suitable for certified Part 23 aircraft.

This air-to-ground radio supports both 8.33 kHz and 25 kHz channel spacing, ensuring compatibility across a wide range of frequencies. It features a high-performance white OLED display, delivering exceptional brightness, contrast, vivid clarity, wide viewing angles, and fast response compared to traditional screens.

Additional features include a built-in two-place intercom, compatibility with both 12V and 24V systems, and automatic squelch for improved audio clarity.

• 20 regular memory channels with a 6-character channel name
• 50 group memory channels (10 Ch × 5 groups) with a channel tag
• Dualwatch and priority watch functions
• One touch access to 121.5 MHz emergency frequency
• Side tone function for monitoring your voice with headset
• ANL (Automatic noise limiter) function reduces pulse type noise
• Remote control capability
• PC programming capability
• Dial lock and panel lock
• Time-out-timer
• Slim 34mm (1.34 inch) height can be installed in a limited panel space
• D-Sub 25-pin industry standard connector for easy installation
• Two types of menu mode; settings menu and configuration menu


• 8W Output Power (Carrier power)

• IC-A220 Non-TSO Version VHF Air Band Transceiver
• Mounting Tray Kit
• DSUB Connector Kit with Pins
