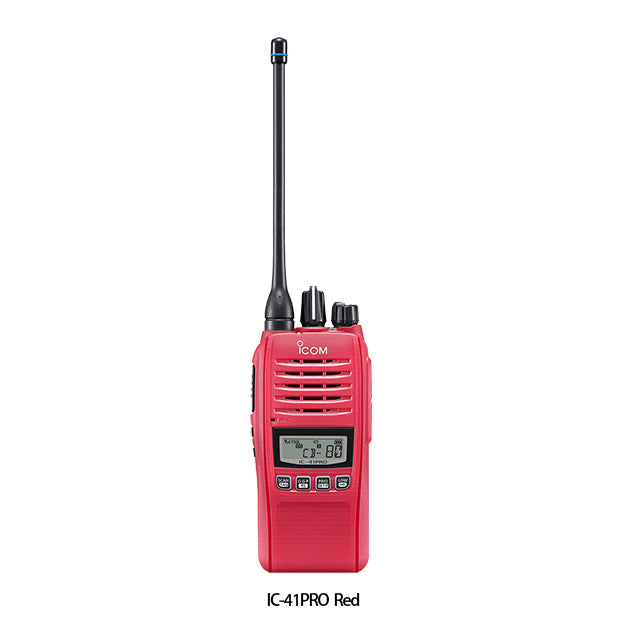

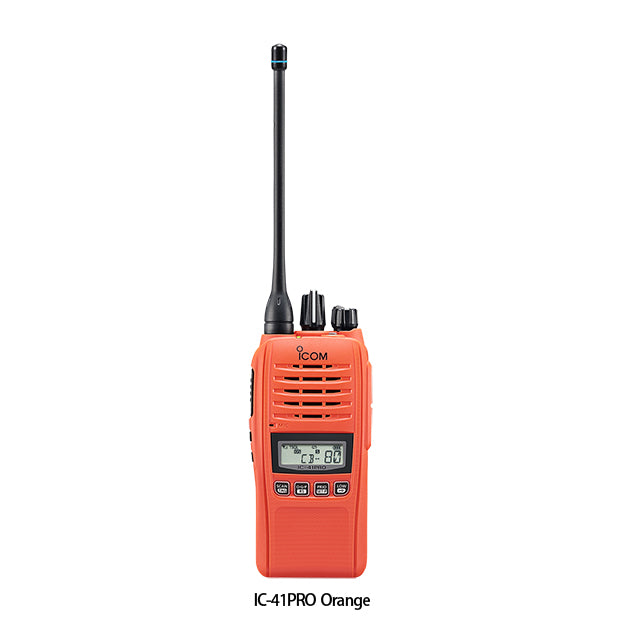

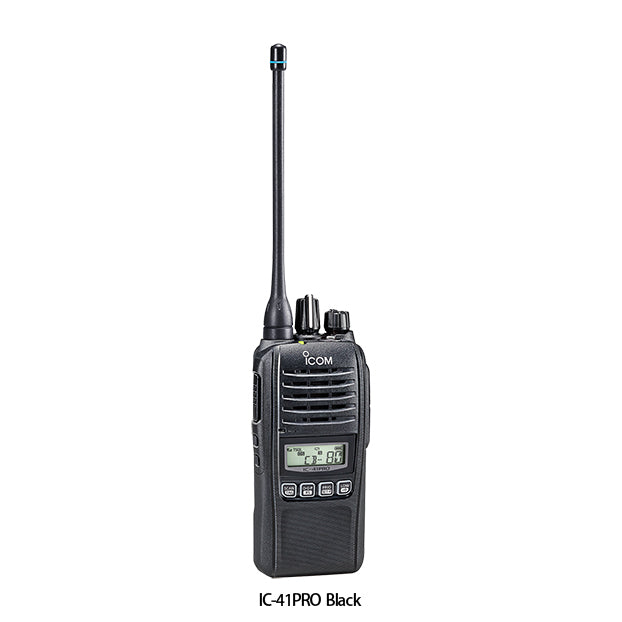

Icom IC-41Pro UHF CB TRANSCEIVER
inc. GST
Enhanced Audio Output Power
The 1500mW volume audio from Icom custom speaker facilitates loud and clear communication.
Optional 1500 mW Speaker-Microphone, HM-222HLWP*
The combination of the optional HM-222HLWP and the IC-41PRO* also provides 1500 mW (typ.) loud audio from the attached speaker-microphone.
* For the transceiver with a "U" mark on the serial number label.
5W RF Output Power
5 Watts (High) and 1 Watt (Low) Selectable RF Output Power
Waterproof and Dustproof Construction Equivalent to IP67
The IC-41PRO is completely protected against dust ingress and is also waterproof (one meter depth for 30 minutes). All radios are pressure tested to 12 categories of MIL-STD-810-G environmental test.
80+ Channels
80 Channel UHF CB plus up to 35 Receive only Channels
Long Battery Life
A Lithium-ion battery pack (BP-280) included provides 18 hours* of operating time
*Typical operation Tx:Rx:Stand-by = 5:5:90. Power save function ON
Easy Channel Rotation
Allows users to easily change channels
Compact Size
Light and slim design makes it easy to carry around
Other Features
- 18 hr (typical) operating time with BP-280
- Voice announcement of channel number
- VOX capacity with optional headset
- Up to 35 channels of Receive only channel*
- Unique repeater scan plus open, group and priority scan
- In-range Indicator (ATS)
- Built-in CTCSS/DCS for providing silent stand-by
- Selective Calling (SELLCALL) functions
- Duplex operation, providing repeater access
- Commercial base construction, Compact and Rugged
- Private Channels from 450 - 520MHz available for commercial users*
General
| IC-41PRO | ||
|---|---|---|
| Frequency coverage |
476.4250 MHz to 477.4125 MHz AUS CB 450 MHz to 520 MHz Private/Receive Only |
|
| Number of channels |
128 channels |
|
| Type of emission |
W: 16K0F3E (25.0 kHz) AUS CB N: 8K50F3E (12.5 kHz) AUS CB |
|
| Power supply requirement |
7.5 V DC |
|
| Current drain (approx.) |
Tx High (5W) |
1.7 A |
| Rx Max. audio |
500 mA (Internal SP) |
|
| Antenna impedance |
50 Ω |
|
| Operating temperature range |
–30°C to +60°C |
|
| Dimensions (W × H × D; Projections not included) |
52.2 × 111.8 × 30.3 mm (With BP-280) |
|
| Weight (approx.) |
270 g (With BP-280) |
|
Transmitter
| IC-41PRO | |||
|---|---|---|---|
| Output power |
5 W |
||
| Maximum permissible deviation |
± 2.5 kHz (12.5 kHz) ±5.0 kHz (25.0 kHz) |
||
| Frequency error | ±2.5 ppm | ||
| Spurious emissions | 70 dB min. | ||
| Adjacent channel power |
60 dB min.; 69 dB typ. (12.5 kHz) 70 dB min.; 74 dB typ. (25 kHz) |
||
| Audio harmonic distortion |
1.0% typ. (12.5 kHz) 1.5% typ. (25 kHz) |
||
| FM Hum and Noise (without CCITT filter) |
34 dB min.; 40 dB typ. (12.5 kHz) 40 dB min.; 46 dB typ. (25 kHz) |
Receiver
| IC-41PRO | ||
|---|---|---|
| Sensitivity (at 12dB SINAD) |
0.25 μV typ. |
|
| Adjacent channel selectivity |
40 dB min.; 56 dB typ. (12.5 kHz), |
|
| Spurious response rejection |
70 dB min. |
|
| Intermodulation rejection |
70 dB min.; 73 dB typ. |
|
|
Hum and noise (without CCITT filter) |
||
|
34 dB min.; 43 dB typ. (12.5 kHz) 40 dB min.; 49 dB typ. (25 kHz)
|
||
| Squelch sensitivity |
0.25 μV typ. |
|
| AF output power (at 5% distortion 8Ω load ) |
Internal SP |
1500 mW typical |
| External SP |
450 mW typical (single end) |
|
- For the transceiver with "U" make on the serial number label.
Supplied accessories
- Battery pack, BP-280
- Desktop charger, BC-213
- AC adapter, BC-242
- Belt clip, MB-133
- Antenna, FA-SC72U
